26–145 kW capacity
Six capacity options support hotels, sports facilities and large-scale commercial pool projects.

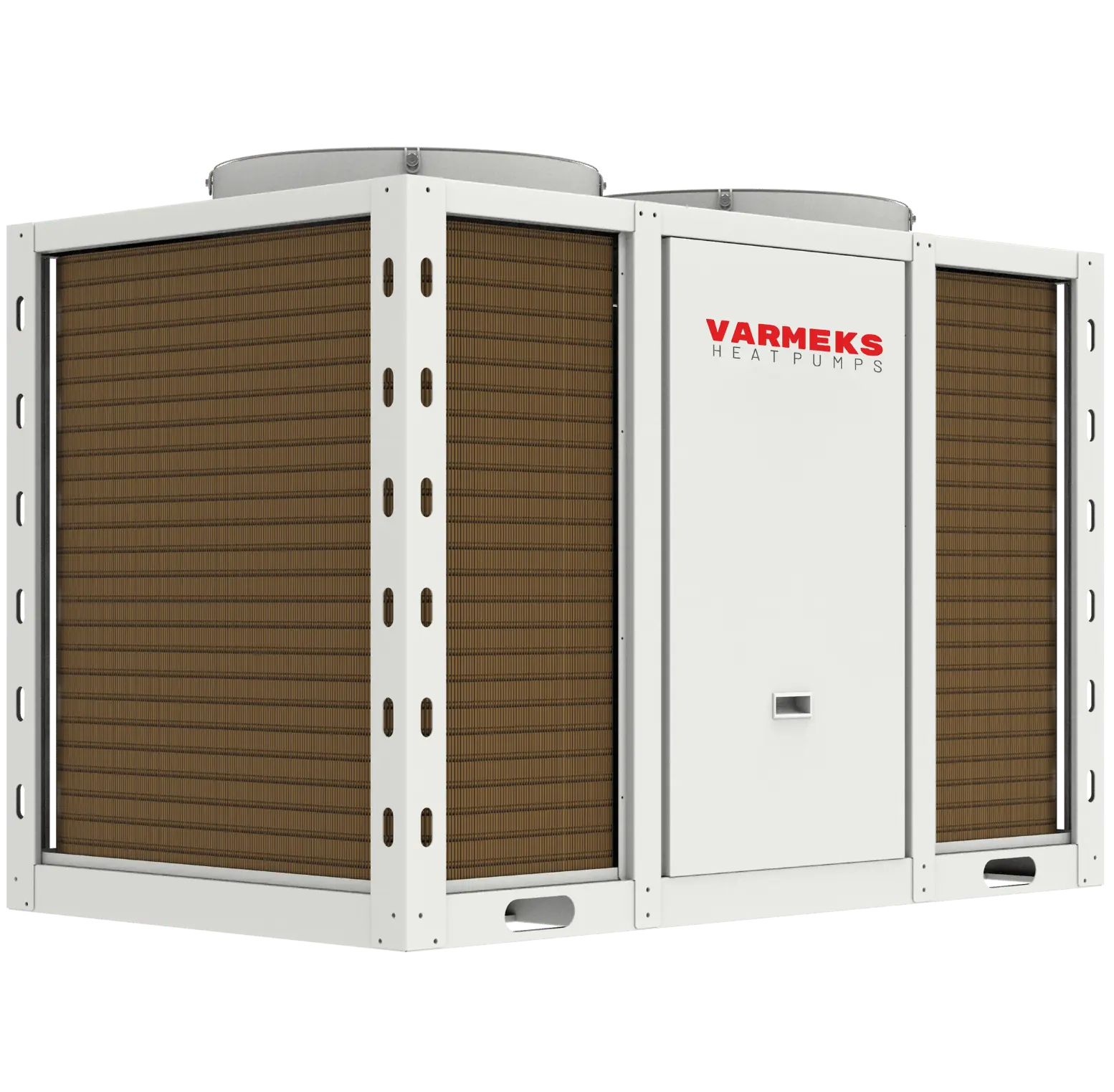

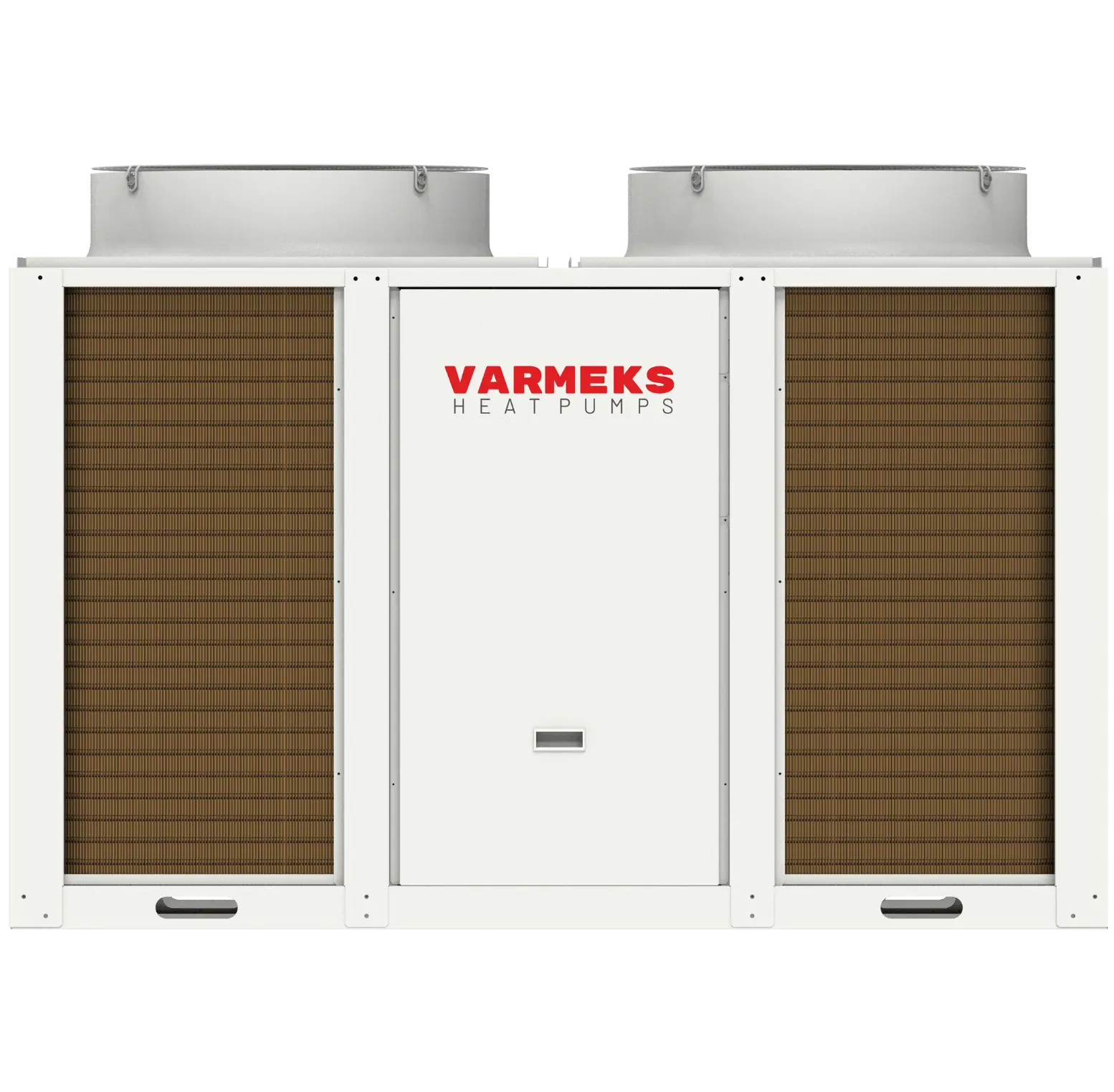

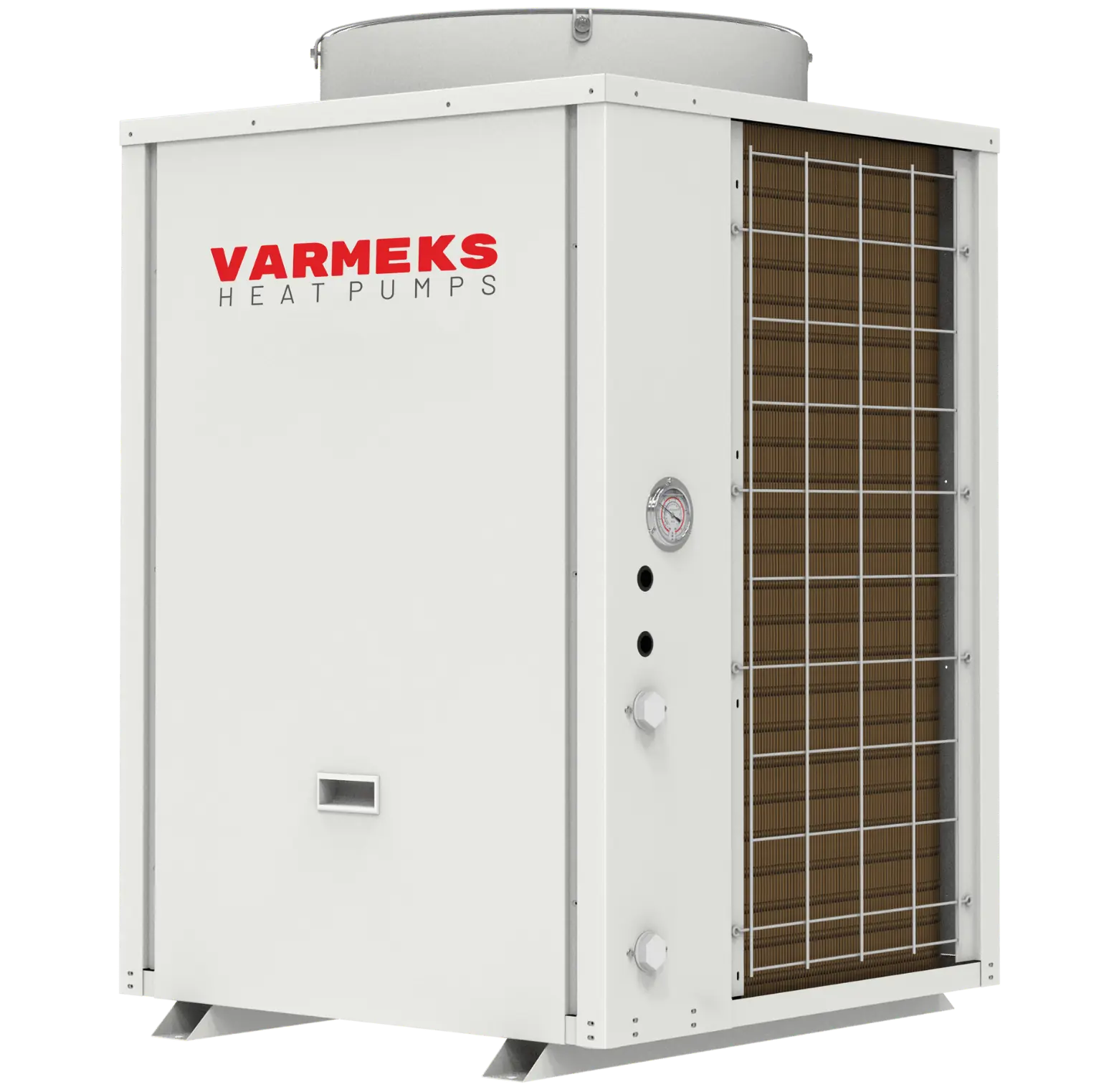

Commercial Pool Heat Pump
Commercial Pool Series
Developed for hotels, sports facilities, leisure complexes and large-scale pool projects, the Commercial Pool Series provides controlled and efficient pool-water heating with 26–145 kW capacity options, R410A refrigerant and a titanium heat exchanger.
COP 6.0–6.2
Sound 56–66 dB(A)
R410A
43°C Pool Water
Titanium Heat Exchanger
IPX4 Protection Rating
380–400V / 3Ph
Highlights
High-capacity performance for commercial pools.
The Commercial Pool Series combines high capacity, controlled water temperature, titanium heat exchanger durability and reliable operation for large-scale commercial pool projects.
43°C water temperature
Supports controlled commercial pool-water temperature management with an outlet water temperature of up to 43°C.
Titanium heat exchanger
The titanium heat exchanger in a PVC shell provides durable and reliable heat transfer for pool-water applications.
R410A refrigerant
Provides stable, consistent performance with refrigerant technology suited to commercial pool systems.
Commercial Pool Series is designed for large-scale pool projects.
Supports controlled, stable and efficient water-temperature management in hotels, sports complexes, leisure facilities and large commercial pools.
Technical table
Commercial Pool Series technical specifications.
| Varmeks Model | VM-OPC3200026 | VM-OPC3200052 | VM-OPC3200075 | VM-OPC3200100 | VM-OPC3200121 | VM-OPC3200145 |
|---|---|---|---|---|---|---|
| Nominal Heating Capacity (kW) | 26 | 51.5 | 75 | 100 | 121 | 145 |
| Nominal Power Input (kW) | 4.2 | 8.4 | 12.1 | 16.8 | 20.2 | 23.8 |
| COP | 6.2 | 6.1 | 6.2 | 6.0 | 6.0 | 6.1 |
| Maximum Outlet Water Temperature | 43°C | |||||
| Power Supply | 380–400V 3PH–50Hz | |||||
| Electric Shock Protection Class | I | |||||
| IP Rating (Protection Level) | IPX4 | |||||
| Refrigerant | R410A | |||||
| Operating Ambient Temperature | -7~43°C | |||||
| Heat Exchanger | Titanium Heat Exchanger in PVC Shell | |||||
| Noise (dB(A)) | 56 | 58 | 60 | 62 | 64 | 66 |
| Water Pressure Drop (kPa) | 50 | 50 | 50 | 45 | 45 | 50 |
| Nominal Water Flow (m³/h) | 11.2 | 22.1 | 32.3 | 43 | 52 | 62.4 |
| Pipe Diameter | G1-1/2" (threaded) | G2" (threaded) | G2" (threaded) | DN110 (PVC flange) | DN110 (PVC flange) | DN110 (PVC flange) |
| Net Weight (kg) | 135 | 200 | 248 | 352 | 450 | 465 |
| Unit Dimensions – Length (mm) | 740 | 1500 | 1530 | 1705 | 2005 | 2005 |
| Unit Dimensions – Width (mm) | 805 | 750 | 790 | 1005 | 1050 | 1050 |
| Unit Dimensions – Height (mm) | 1165 | 1075 | 1100 | 1230 | 1400 | 1400 |
Test Conditions
Nominal operating condition: Dry-bulb temperature 27°C, inlet water temperature 26°C.
Installation must use PVC piping.
Nominal operating condition: Dry-bulb temperature 27°C, inlet water temperature 26°C.
Installation must use PVC piping.
Application
Commercial Pool Application Areas
Designed for large commercial pools and facility projects.
Application
Commercial Pool Application Areas
Suitable for hotels, sports facilities, leisure complexes, water parks and large-scale commercial pool projects. Correct capacity selection supports stable water temperature.
Capacity
How is the right capacity selected?
Pool volume and operating conditions are evaluated together.
Capacity
How is the right capacity selected?
The correct model should be determined by evaluating pool volume, indoor or outdoor conditions, target water temperature, operating season, pool cover and filtration flow rate.
Project
What information is needed for a quote?
Pool dimensions, operating season and system details are sufficient.
Project
What information is needed for a quote?
Accurate product guidance can be provided when pool dimensions or volume, facility location, indoor or outdoor use, target temperature, operating season and existing system details are shared.
Let us determine the right capacity for your Commercial Pool Series project.
Contact our sales and engineering team to select the right model, capacity and system configuration for your pool project.
Your request will be reviewed promptly by our engineering team.
