200–300 L capacity
Two tank volumes provide suitable options for residential and commercial domestic hot water requirements.

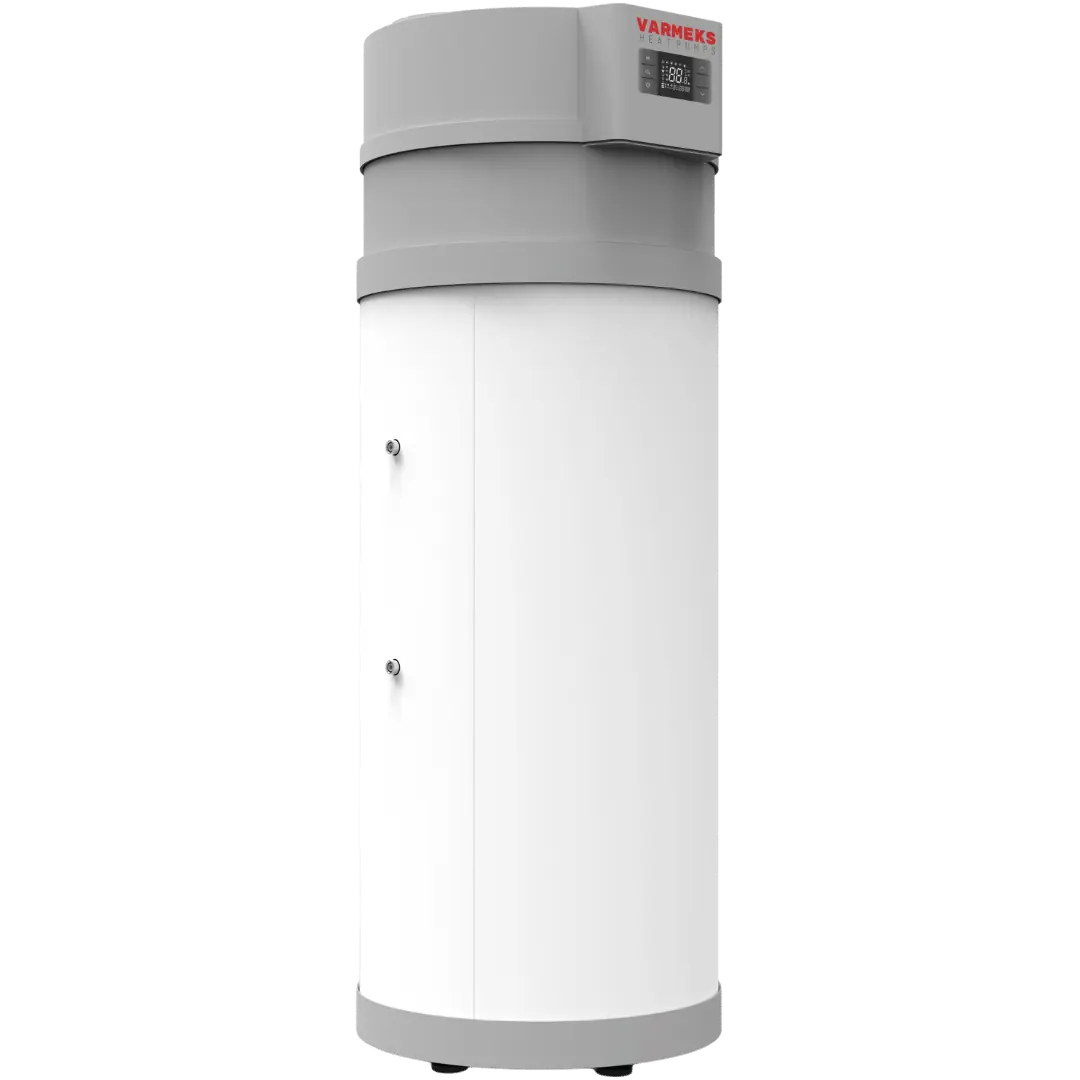

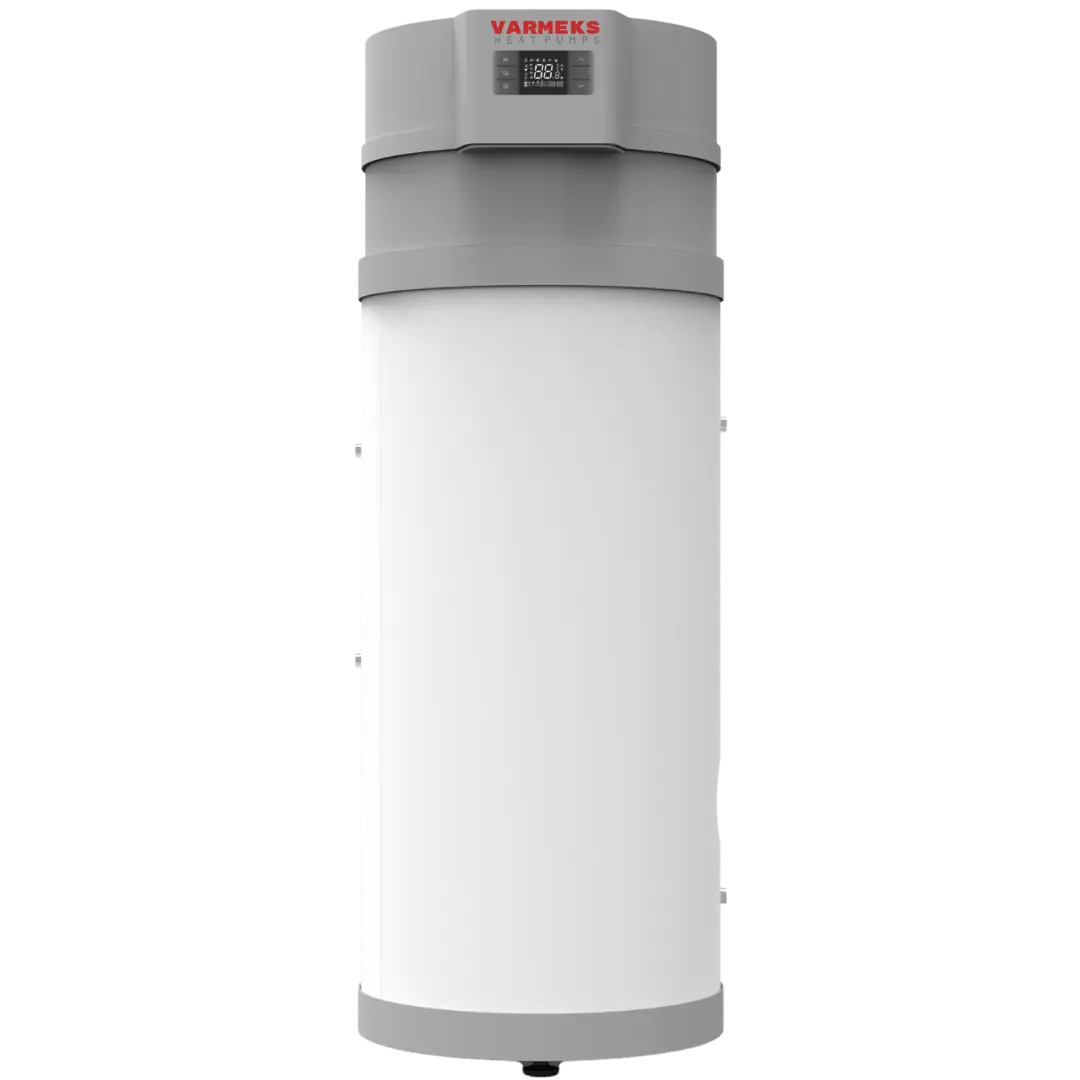

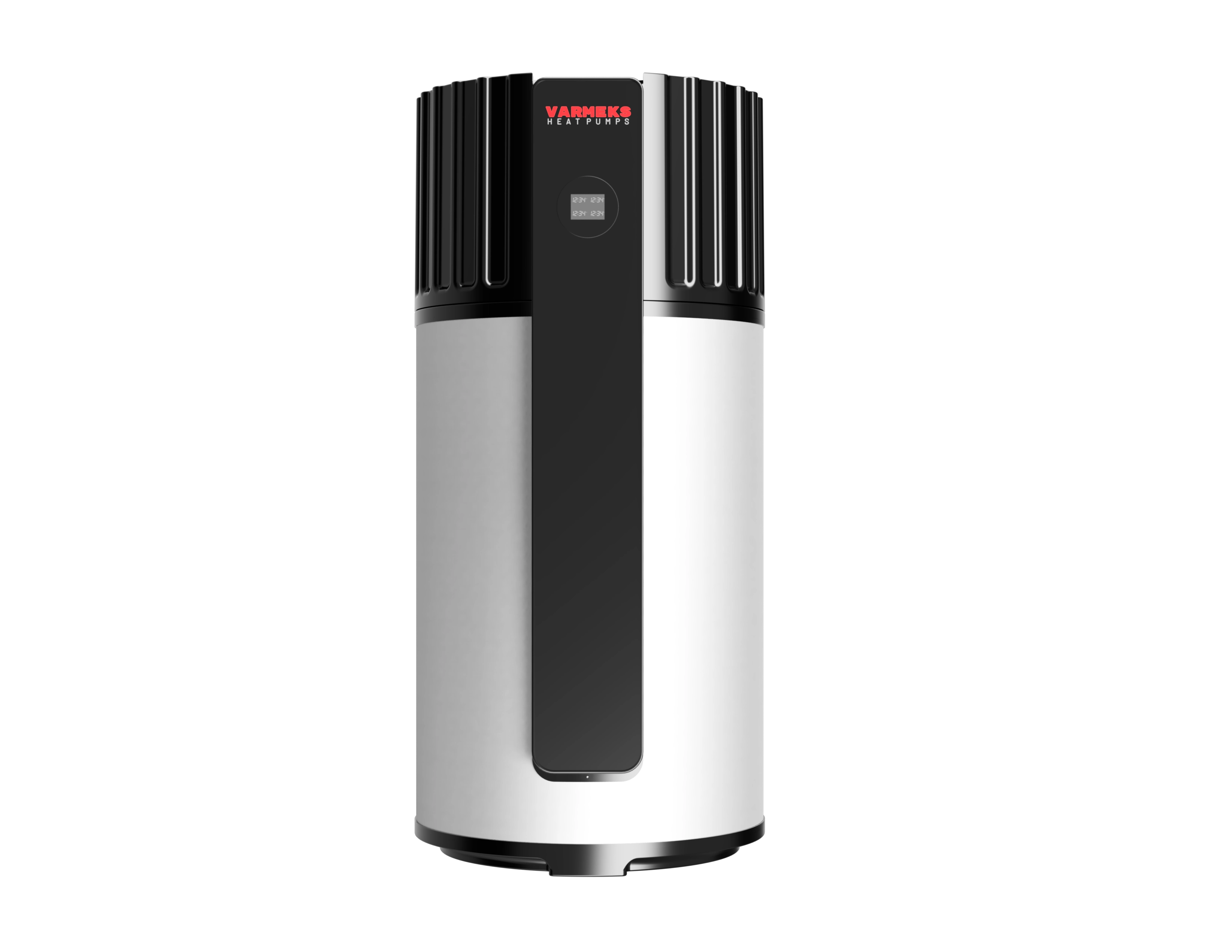

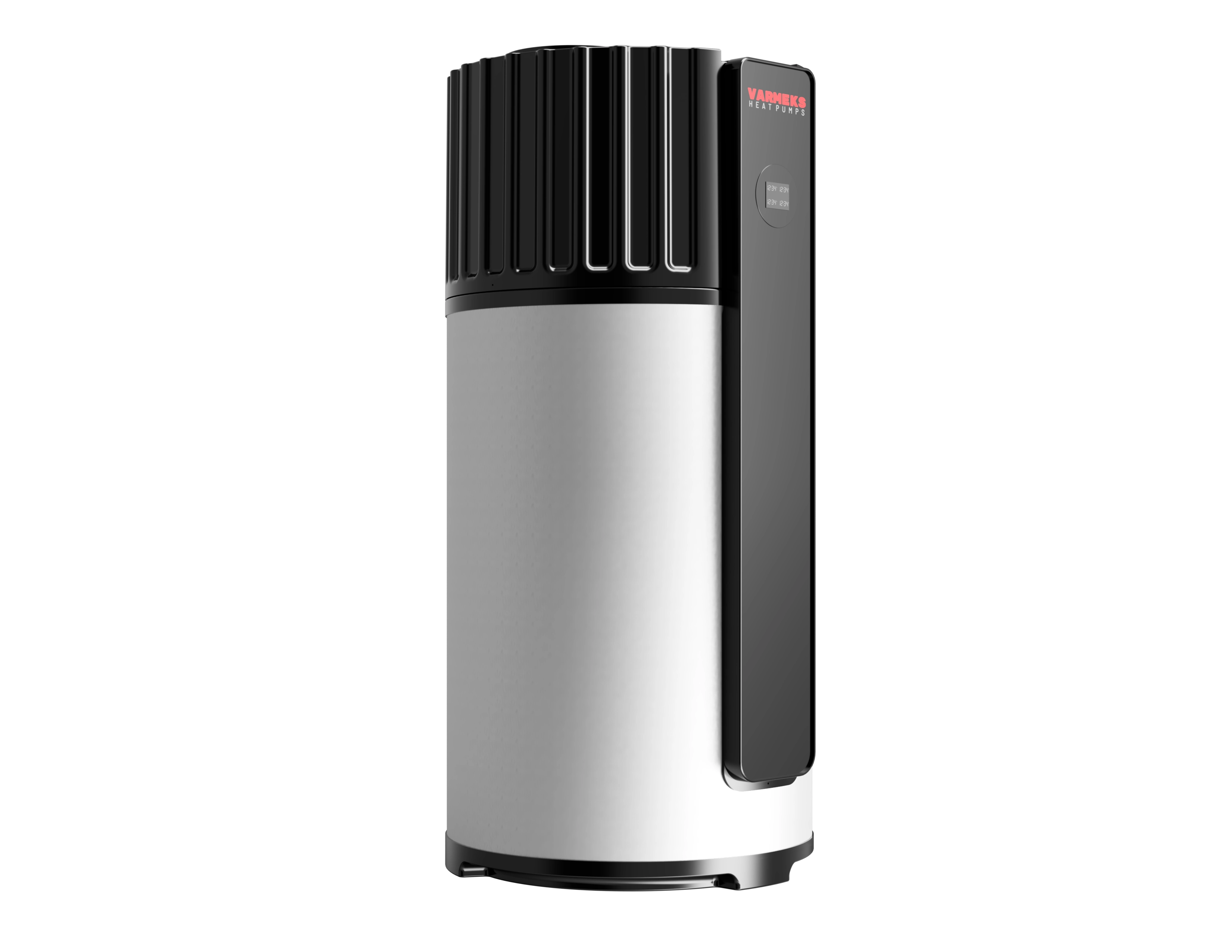

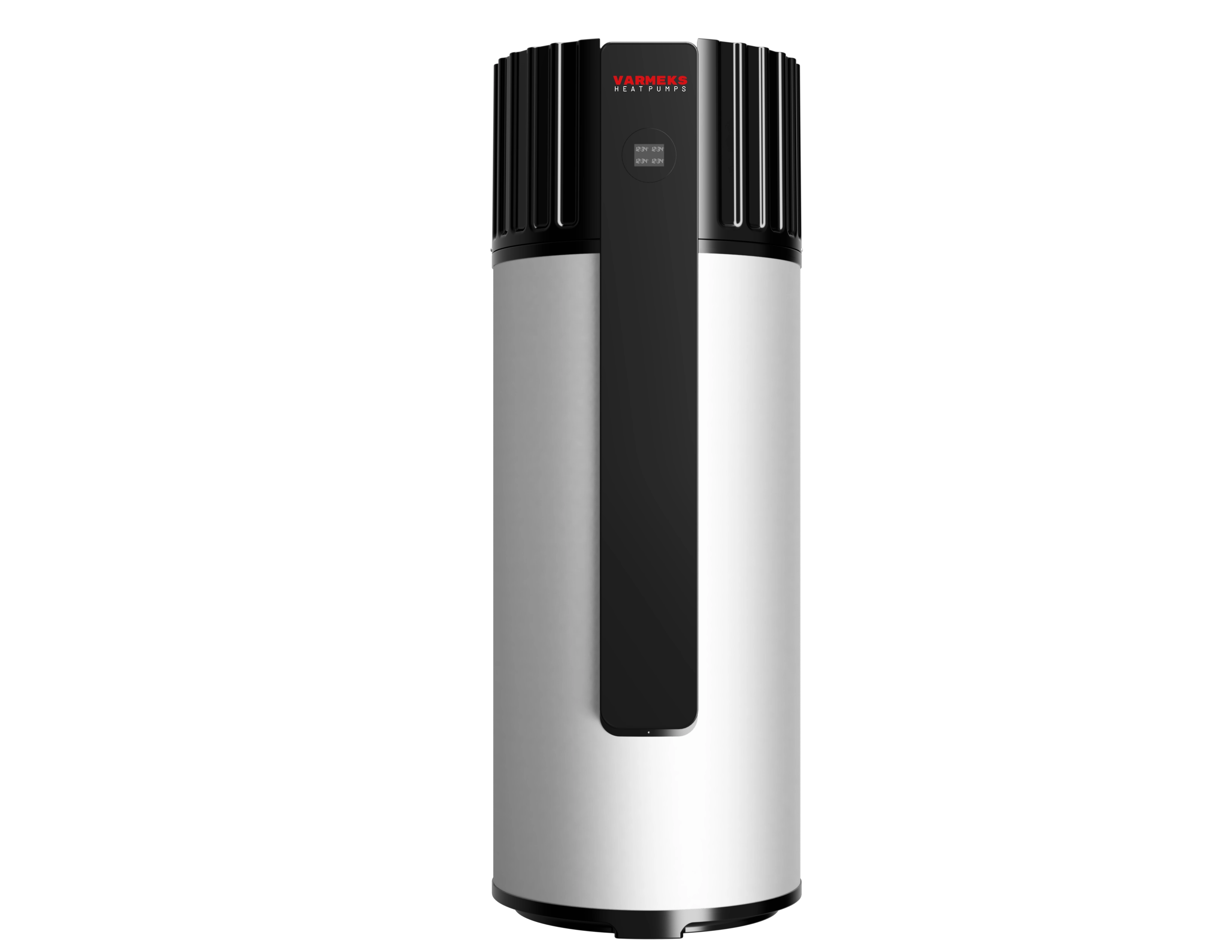

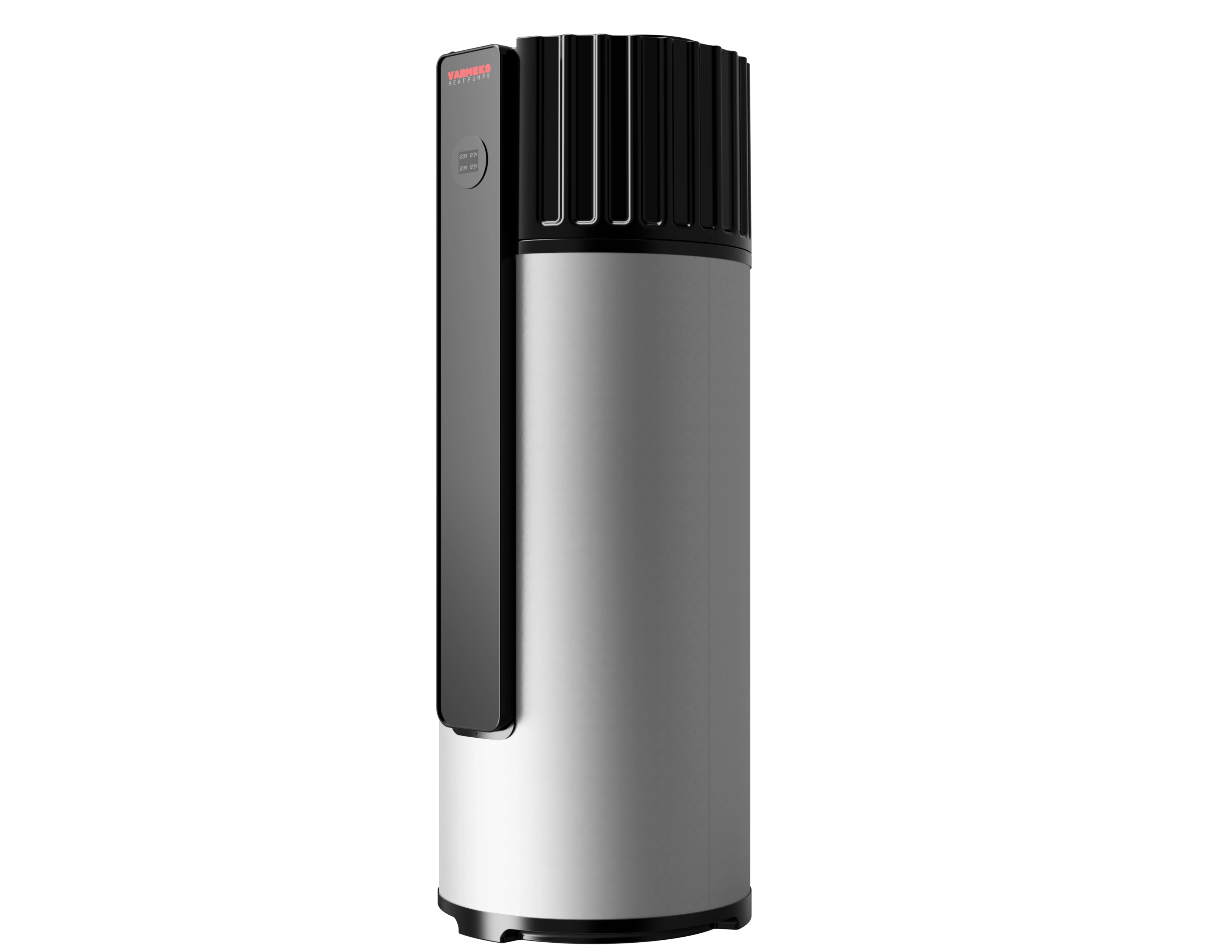

Domestic Hot Water Heat Pump
Varm All Series
Developed for the domestic hot water needs of homes, villas, hotels and businesses, the Varm All Series delivers efficient and comfortable operation with 200 and 300-litre tank options, R290 refrigerant, Wi-Fi control and hot water support up to 75°C.
COP 3.65–3.75
200–300 L
R290
Wi-Fi Control
A+ Energy Class
Up to 75°C
IPX1 Protection Rating
Highlights
Domestic hot water with efficient and controlled comfort.
The Varm All Series combines 200 and 300-litre options, R290 refrigerant, high-temperature support and convenient Wi-Fi control for different domestic hot water requirements.
75°C hot water
Backup heater support raises the water temperature up to 75°C for a wide range of usage scenarios.

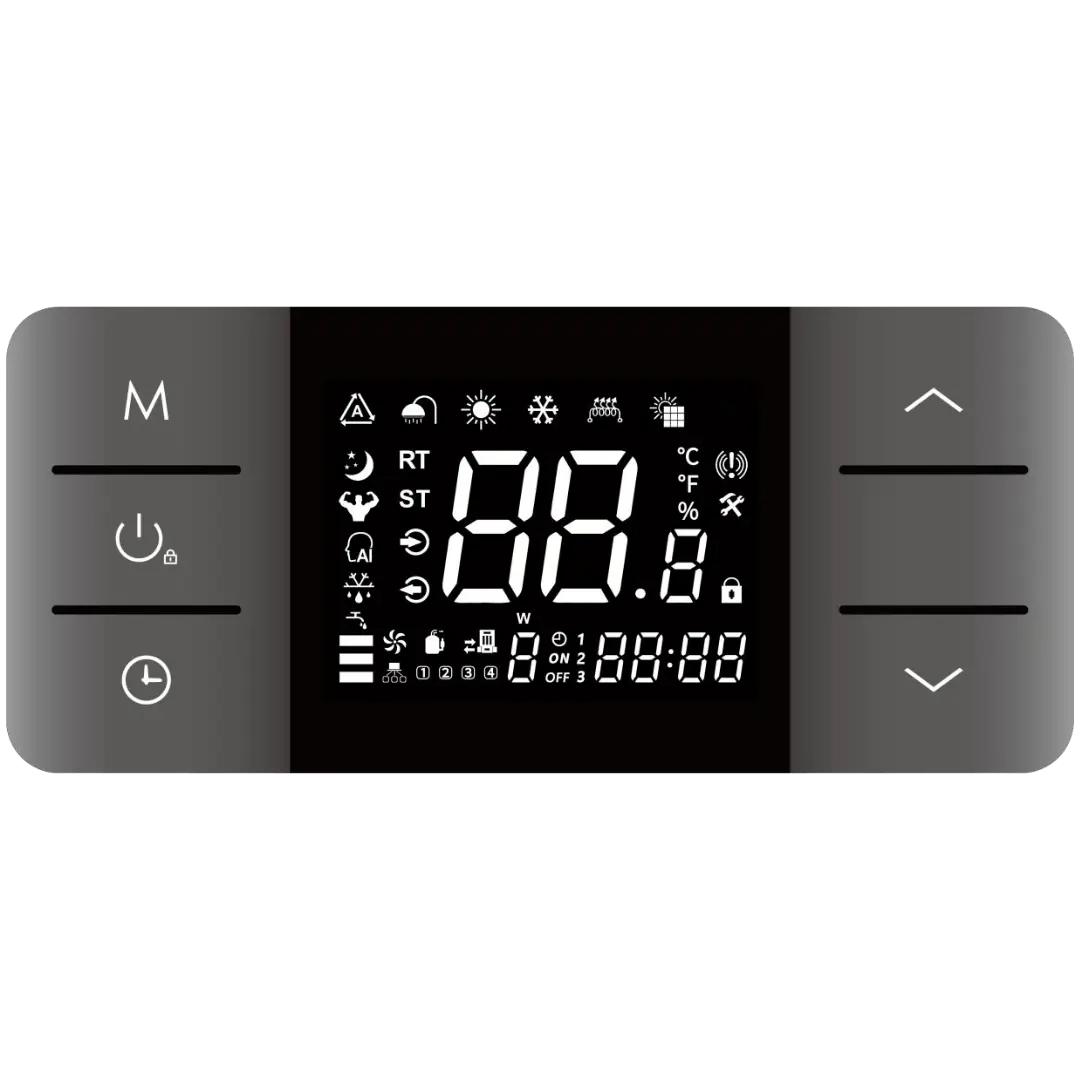

Wi-Fi control
Remote monitoring and control make domestic hot water settings easy and practical to manage.
Modern Refrigerant
R290 technology and high COP values support efficient domestic hot water production.
Varm All Series adapts to different hot water needs.
Supports efficient, controlled and comfortable domestic hot water preparation in homes, villas, hotels and commercial buildings.
Technical Data
Varm All Series technical specifications.
| Parameter | 200 L | 300 L |
|---|---|---|
| Installation Type | Floor-standing | Floor-standing |
| Power Supply (V/Ph/Hz) | 220–240 / 1 / 50 | 220–240 / 1 / 50 |
| Water Tank Volume (L) | 200 | 300 |
| Load Profile | L | XL |
| Nominal Heating Capacity (kW) | 1.6 | 1.6 |
| Energy Class | A+ | A+ |
| Heating Capacity (7/6°C) (kW) | 1.23 | 1.30 |
| Heating Power Input (kW) | 0.82 | 0.84 |
| COP (7/6°C) | 2.93 | 3.15 |
| Heating Capacity (14/13°C) (kW) | 1.41 | 1.43 |
| COP (14/13°C) | 3.42 | 3.53 |
| Heating Capacity (20/15°C) (kW) | 1.48 | 1.50 |
| COP (20/15°C) | 3.65 | 3.75 |
| Refrigerant Charge | R290 / 150 g | R290 / 150 g |
| Electric Heater (kW) | 2 | 2 |
| Sound Power Level (dB(A)) | 55 | 55 |
| Max. Water Outlet Temperature (°C) | 65 | 65 |
| Max. Water Temperature with Backup Heater (°C) | 75 | 75 |
| Operating Range (°C) | -7~45 | -7~45 |
| Temperature Setting Range (°C) | 15~75 | 15~75 |
| Rated Power (W) | 900+2000 | 900+2000 |
| Rated Current (A) | 3.9+9.3 | 3.9+9.3 |
| Rated Hot Water Output (L/h) | 39 | 34.4 |
| Airflow (m³/h) | 450 | 450 |
| Indoor Unit Protection Rating | IPX1 | IPX1 |
| Max. Allowable Tank Pressure (bar) | 6 | 6 |
| Inner Tank Material | S235JR Enamel Coated / Stainless Steel | S235JR Enamel Coated / Stainless Steel |
| Inner Tank Thickness (mm) | 2.5 | 2.5 |
| Insulation Material | Polyurethane | Polyurethane |
| Insulation Thickness (mm) | 40 | 40 |
| Outer Casing Material | Electrostatically Painted Galvanised Steel | Electrostatically Painted Galvanised Steel |
| Hot Water Outlet | G 3/4 | G 3/4 |
| Cold Water Inlet | G 3/4 | G 3/4 |
| Drain Connection Size | G 3/4 | G 3/4 |
| Condensate Outlet | G 1/2 | G 1/2 |
| Net Dimensions (L×W×H) (mm) | Ø677 × 1520 | Ø677 × 1920 |
| Packaging Dimensions (L×W×H) (mm) | 720 × 720 × 1700 | 720 × 720 × 2070 |
| Net Weight (kg) | 93 | 117 |
| Gross Weight (kg) | 109 | 137 |
Technical Note
Technical data are nominal values measured under standard test conditions. Actual performance may vary depending on operating conditions.
Technical data are nominal values measured under standard test conditions. Actual performance may vary depending on operating conditions.
Application
Varm All Application Areas
Suitable for residential and commercial hot water requirements.
Application
Varm All Application Areas
Suitable for meeting domestic hot water demand in homes, villas, hotels, guesthouses and similar buildings. Selecting the appropriate tank volume for the project ensures efficient and balanced operation.
Capacity
How Is the Right Tank Volume Selected?
The number of users and daily consumption are evaluated together.
Capacity
How Is the Right Tank Volume Selected?
The 200 or 300-litre option should be selected by evaluating the number of users, daily hot water consumption, simultaneous demand, target temperature and installation area.
Project
What Information Is Required for a Quote?
User, consumption and installation area details are sufficient.
Project
What Information Is Required for a Quote?
Sharing the number of users, daily hot water demand, installation area, existing system and target water temperature enables accurate model and system selection.
Let's determine the right tank volume for your Varm All Series together.
Contact our sales and engineering team to select the right model, tank capacity and hot water system for your project.
Your request will be reviewed promptly by our engineering team.
